WOXCKER JL7 10W Laser Engraver

Regular price: $399.00
Regular price
Sale price: $399.00

Tax included. Shipping calculated at checkout.

TYPE JL7 laser JL7 Laser + Air Assist

Product variants

Woxcker JL7 – Compact, Precise, and Smart Laser Engraver

✅ Key Features:

User-Friendly Safety Design
Equipped with protective cover, goggles & built-in gyroscope; 3-way limit switches prevent crashes
Excellent Engraving & Cutting
10W laser cuts 20mm wood, 10mm black acrylic; 0.01mm precision, ultra-fine 0.08×0.08mm focus

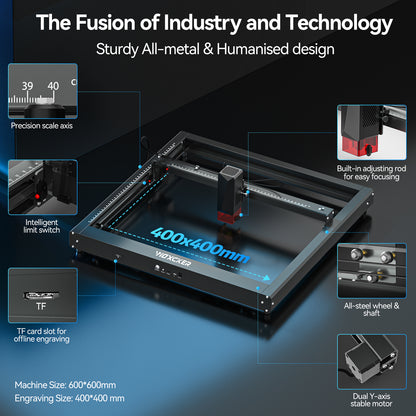

Stable & Durable Structure
Triple-motor system + steel-axis wheels for smooth movement and long-lasting all-metal build
• Engraving area: 400×400mm
App & Offline Engraving
Engrave via mobile app, USB, WiFi, or offline with included TF card – no PC required

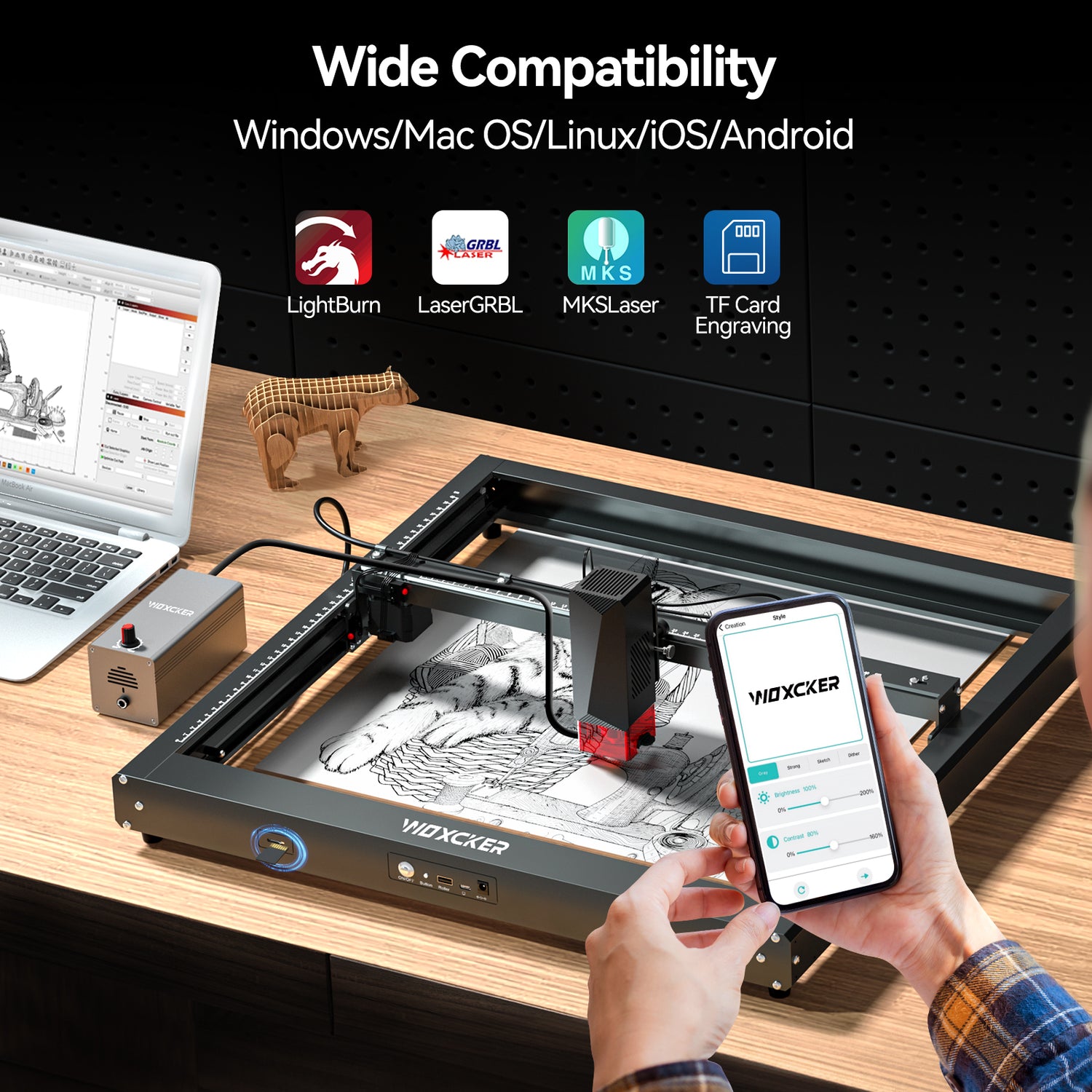

Wide Compatibility
Supports LaserGRBL, LightBurn (PC) and Cutlabx(mobile)
• Works on wood, acrylic, glass, leather, ceramics, metal & more

🎁 Perfect for DIYers, small studios, and hobby creators with precision needs.

Why this design matters

Need a large-bed laser that doesn't tie you to a computer? The WOXCKER JL7 10W delivers a 400×400 mm work area and cuts 20 mm wood and 10 mm black acrylic, with a triple-motor system and steel-axis wheels for smooth, durable movement and a 0.08×0.08 mm focus. A built-in gyroscope and 3-way limit switches add protection, and you can engrave fully offline from a TF card — or via mobile app, USB and WiFi, with no PC required. LightBurn and LaserGRBL are both supported. If you want big-bed cutting with true offline convenience, the JL7 10W is the pick.

Hurry, only 20 items left in stock!

Frequently Bought Together

Bundle your machine with accessories and save time.

WOXCKER JL7 10W Laser Engraver

This item $399.00

WOXCKER MD12 Air Assist Set(US)

$89.99

WOXCKER AROT5 Rotary Roller (US)

$109.00

Air Purifier Designed for WOXCKER Engraving Machine(US)

$129.99

Total

Specifications

Laser & Processing
Laser type	10W diode laser with fixed focus
Processing mode	Laser engraving, laser cutting
Working area	400 × 400 mm
Max working speed	20,000 mm/min
Max cutting capacity	5 mm in a single pass
Max engraving height	Maximum engraving object height: 48 mm
Max rotary diameter	Rotary engraving of cylinders up to 120 mm in diameter
Laser spot size	0.15 × 0.1 mm
Focusing mode	Knob fixed focus
Motion accuracy	Stepper motor, 32-bit high-speed MCU
Software & Connectivity
Supported software	Desktop: LaserGRBL, LightBurn, CutLabX Mobile: CutLabX
Operating system	Windows / macOS / Android / iOS
Connection method	Wi-Fi, USB Type-C cable, MAC & Windows desktop app / TF card
File formats	AI/SVG/DXF/PDF/PLT/HPGL/GCode/ PNG/JPG/BMP/GIF/TIF/TGA/WebP
Physical
Dimensions	600 × 600 × 200 mm
Weight	3.5 kg
Max input power	<60W
Power adapter	DC12V/5A
Safety
Safety certification	Class 1 laser certification
